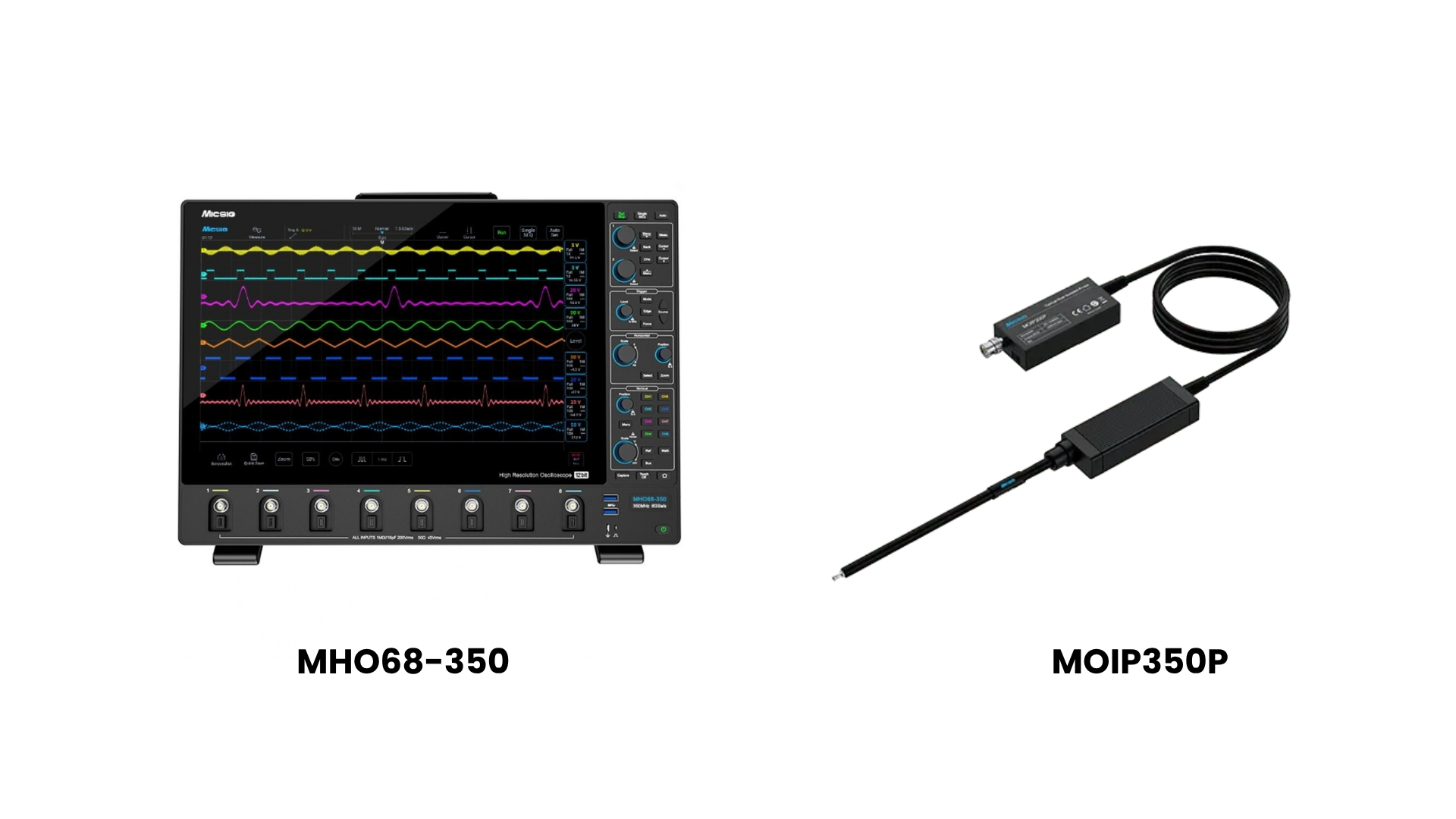

Micsig MOIP-MHO68-350 Bundle

Features

Micsig MHO68-350 12-bit oscilloscope

• 350 MHz bandwidth, rise time ≤ 1 ns
• 8 analog channels in one compact device
• 12-bit A/D converter with 6 GSa/s real-time sampling
• 1800 Mpts memory depth
• Low noise: < 80 µVrms
• 16-inch capacitive multi-touch screen, 1920 × 1200
• Ultra-thin case: 3.52 cm
• Standard BNC and Mic-OPI™ probe interface; Mic-OPI automatically detects the passive attenuation of the probe.
• Bus triggering and decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C; ARINC-429 and MIL-STD-1553B optional
• Interfaces: WLAN, LAN, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger output
• Android operating system with 32 GB internal storage for waveform and video recording
• Remote control via PC software and iOS/Android app; screen mirroring via Wi-Fi, USB and HDMI

Micsig SigOFIT MOIP350P optically isolated probe (Gen 3)

• 350 MHz bandwidth, rise time ≤ 1 ns
• Common-mode rejection ratio (CMRR): 180 dB (DC), 118 dB (350 MHz)
• 85 kVspk common-mode voltage range
• Differential measurements from ±0.01 V to ±20 kV with interchangeable attenuation tips
• Input capacitance < 3 pF, suitable for GaN and SiC switching nodes
• DC gain accuracy 1%, zero point drift < 0.1%
• Measurements without calibration; no automatic zeroing required.
• Laser-driven for uninterrupted operation; improved temperature stability
• MCX and MMCX coaxial connectors for common-mode interference suppression
• 2 m fiber length (special lengths available on request)
• Works with any BNC oscilloscope.
• Direct SMA-based small-signal measurement with integrated 2:1 attenuation

Why choose this package?

• Adapted bandwidth. The probe and oscilloscope are both specified for 350 MHz. You get the nominal bandwidth at the probe tip, without having to guess which component is limiting the system.
• Isolated high-side measurements. Measure high-side gate signals and floating switch nodes in half- and full-bridge circuits. Optical isolation of 118 dB at 350 MHz prevents common-mode interference from distorting the measurement result.
• Small signals at large amplitudes. The MHO68-350's 12-bit vertical resolution and < 80 µVrms noise level take advantage of the probe's wide dynamic range, from millivolt signals up to kilovolt ranges.
• Ready to use immediately. The MOIP350P requires no calibration and no automatic zero correction. It comes with OP50 (±25 V) and OP5000 (±2500 V) peaks, covering both low-voltage and high-voltage connections from day one.
• Expansion options. Add attenuation peaks up to ±20 kV or combine the MHO68-350 with Micsig high-voltage differential probes, Rogowski coils, and AC/DC current probes on the remaining channels.
• A single supplier. Ordering, technical advice and support from eVision Instruments. Demo units are available upon request.
