Micsig MOIP-MHO68-500-Bundle

Features

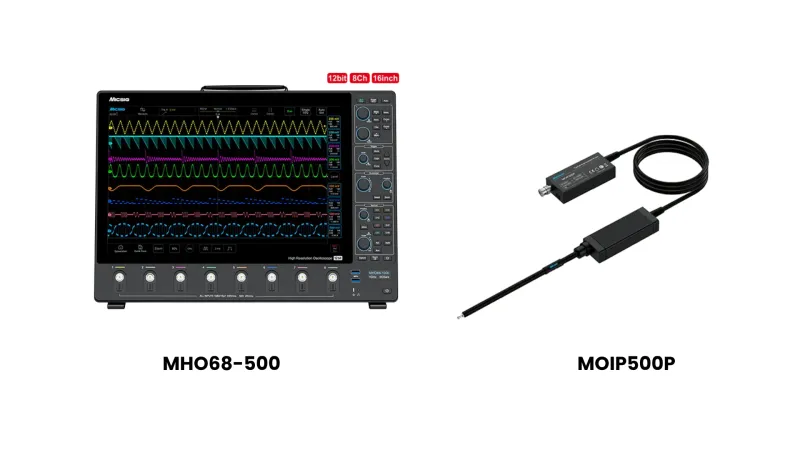

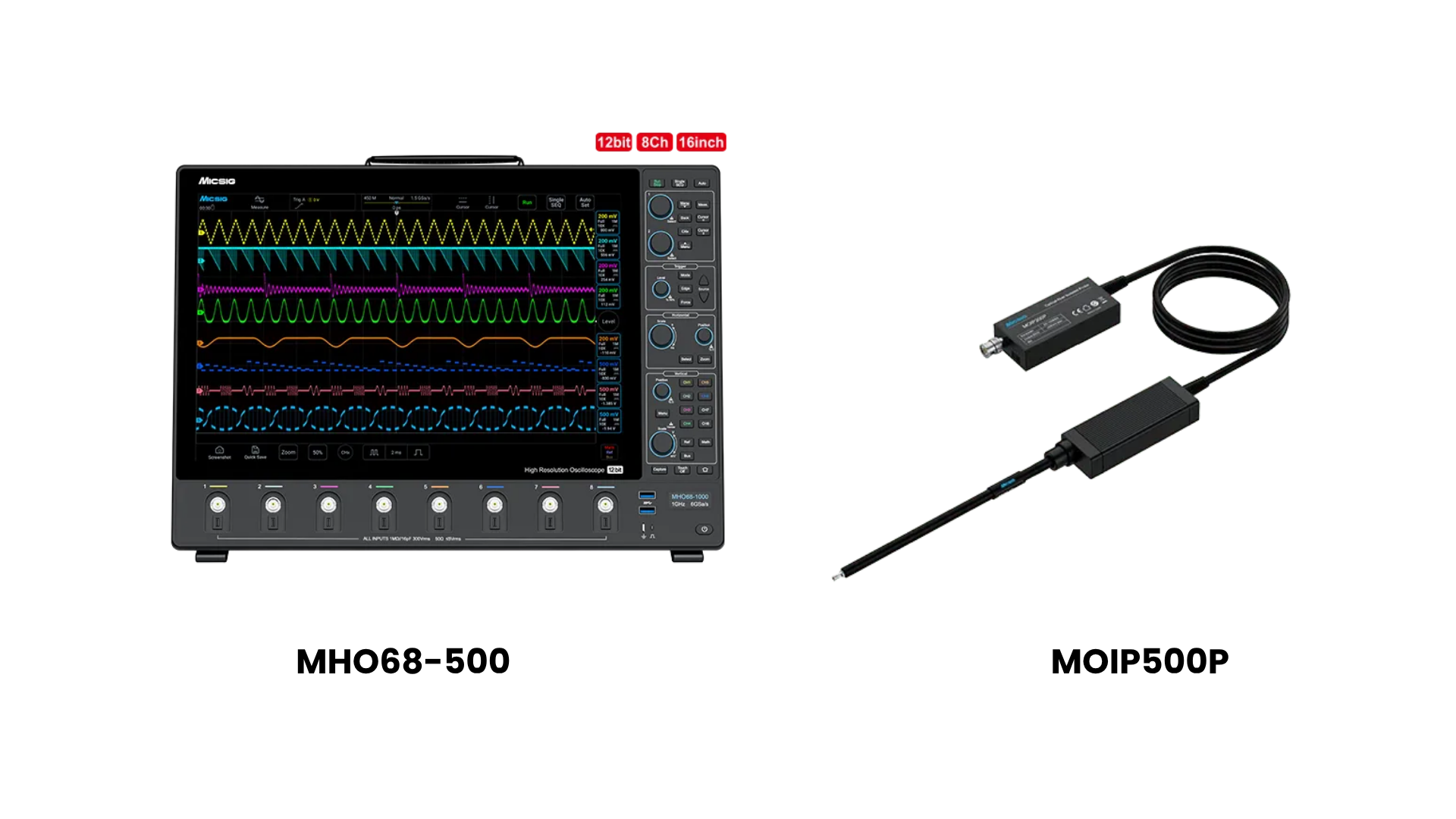

Micsig MHO68-500 12-bit oscilloscope

• 500 MHz bandwidth, rise time ≤ 0.7 ns
• 8 analogue channels in one compact unit
• 12-bit A/D converter with 6 GSa/s real-time sampling
• 1800 Mpts memory depth
• Low noise: < 80 µVrms
• 16-inch capacitive multi-touch display, 1920 × 1200
• Ultra-thin housing: 3.52 cm
• Standard BNC and Mic-OPI™ probe interface; Mic-OPI detects passive probe attenuation automatically
• Bus trigger and decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C; ARINC-429 and MIL-STD-1553B optional
• Interfaces: Wi-Fi, LAN, USB 3.0/2.0 host, USB Type-C, HDMI, trigger out
• Android OS with 32 GB internal storage for waveforms and video recording
• Remote control via PC software and iOS/Android app; screen sharing via WLAN, USB and HDMI

Micsig SigOFIT MOIP500P optically isolated probe (Gen 3)

• 500 MHz bandwidth, rise time ≤ 800 ps
• CMRR: 180 dB (DC), 114 dB (500 MHz)
• 85 kVpk common-mode voltage range
• Differential measurements from ±0.01 V to ±20 kV with exchangeable attenuation tips
• Input capacitance < 3 pF, suited to GaN and SiC switch nodes
• DC gain accuracy 1 %, zero drift < 0.1 %
• Calibration-free measurements; no auto-zero required
• Laser-powered for uninterrupted operation; improved temperature stability
• MCX and MMCX coaxial tip connections to suppress common-mode noise pick-up
• 2 m fibre length (custom lengths available)
• Works with any BNC oscilloscope
• Direct SMA-based small-signal measurement with integrated 2:1 attenuation

Why choose this bundle

• Matched bandwidth. Probe and oscilloscope are both specified to 500 MHz. You get the rated bandwidth at the probe tip without guessing which part limits the system.
• Isolated high-side measurements. Measure high-side gate signals and floating switch nodes in half- and full-bridge circuits. Optical isolation with 114 dB at 500 MHz keeps common-mode noise out of the result.
• Small signals on large swings. The 12-bit vertical resolution and the < 80 µVrms noise floor of the MHO68-500 make use of the probe's wide dynamic range, from millivolt-level signals up to kilovolt ranges.
• Ready to measure. The MOIP500P is calibration-free and needs no auto-zero. It ships with OP50 (±25 V) and OP5000 (±2500 V) tips, so low-voltage and high-voltage nodes are covered from day one.

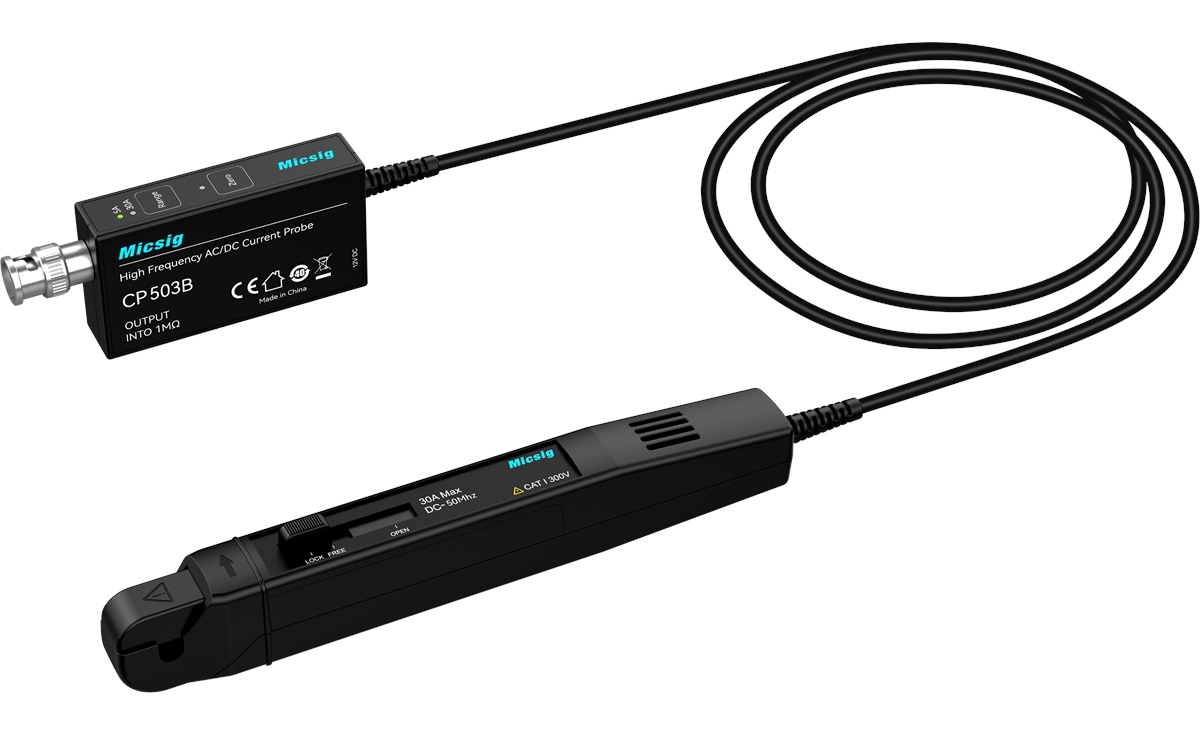

• Room to grow. Add attenuation tips up to ±20 kV, or combine the MHO68-500 with Micsig high-voltage differential probes, Rogowski coils and AC/DC current probes on the remaining channels.
• One supplier. Order, technical advice and support from eVision Instruments. Demo units are available on request.
